SNNM4C51AR HIT

Housing Special Marine Grade Housing
Manufacture Lead Time Normally 2~3 weeks (Busy moments => 4 weeks)
Warranty 2 Years
Logo No Logo or Vision Marine Logo
(OEM Logo - Needs higher amount)
Payment 100% payment clear before shipment (Negotiable)
Shipment Term FOB Korea (Air & Ocean)
Origin Made in Korea

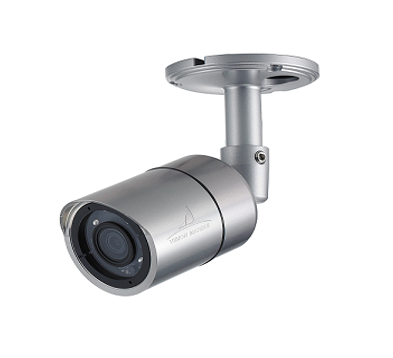

IP - Marine Bullet Camera

Key Features


  • 2.0 Mega pixel 1/2.8" SONY progressive sc an CMOS image sensor for excellent image quality
  • 3mm wide view MP lens
  • Low light, Ultra high sensitivity camera
  • High Temperature useful
  • Dual Streaming of H.264 and M-JPEG
  • Up to 30 frames per second at all image resolutions
  • Supports image resolutions up to 2MP
  • Integrated motion detection with pre- and post-alarm image/video buffering
  • Supports WDR, Defog, 2D+3DNR, Smart IR
  • Supports CBR (constant bit rate) and VBR (variable bit rate) modes
  • Controllable frame rate
  • Privacy Masking up to 4 areas
  • Integrated HTTP Web server supporting 8 simultaneous user connections
  • Conformant with ONVIF (Profile-S)
  • Includes Windows based IP Installer and license-free 16 channel NVR(Network Video Recorder) software



Specifications


MODEL

SNNM4C51AR

System

CPU

ARM1176JZF-STM                                                ( 400 MHz, Instruction cache: 32kbyte, data cache: 16kbyte, MMU )

Flash

2Gbit Flash memory

SDRAM

2Gbit DDR3

Camera

Image sensor

2.0 Mega 1/2.8" SONY progressive scan CMOS

Total Pixels

1945(H) x 1109(V)  2.16 Megapixel

Effective Pixels

1945(H) x 1097(V)  2.13 Megapixel

S/N Ratio

More than 50dB

Min. Illumination

0 Lux (IR On)

IR Distance

40M (4 Built-in Power LED’s)

Day & Night

ICR

Lens

3mm / F1.5 STARVIS Megapixel Lens  (Option 6mm)

Video

Video compression

H.264 High profile @Level 4.0, Motion JPEG

Resolutions

Up to 1920 x 1080  2MP

Frame rate

Dual Stream

1st stream: H.264 Up to 30fps with 1920x1080P

2nd stream: MJPEG Up to 30fps with VGA resolution

Video streaming

H.264 High Profile@4.1, MJPEG –Image quality: 3 Steps

VBR/CBR in H.264

Corridor view

Corridor view (90degree/ 270degree)

Image setting







Brightness, contrast, Sharpness

Day & Night

Auto White Balance, Auto Exposure

Privacy Mask, Defog

DSS, DSS, 2DNR(On/Off), 3DNR(On/Off)

System Integration

Security

Password Protection, User access log, HTTPS encryption

Supported protocol

HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP

Intelligent video

User set 12x12 ROI(Region of Interest), 5 Step Sensitivity.

Alarm events

Motion detection.

Video buffer

None

Firmware upgrade

Remote upgrade via network

API

CGI Interface document, ActiveX Interface(ocx(dll) + document)

Physical

Memory Slot(Option)

Save to Micro SD card with event mode and continuous mode

Power Source

DC12V/1.5A,

PoE(Power over Ethernet): 802.3af

Power Consumption

Max. 5W with IR ON

Net Weight

415g

LED's

Power, Network Connection

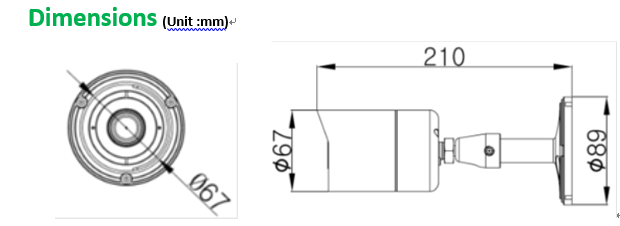

Dimension

67mm(Dia. Ø) x 104mm(H)

General

Operating Temperature

-20 degree~80 degree Celsius(14F~176F)

Storage Temperature

-30 degree~60 degree Celsius(-4F~140F)

Software

Included Software

NVR C/S (16 Channel), IP Installer (Windows only)

* Specifications are subject to change without prior notice.
