SNNM1C51AR

Housing Special Marine Grade Housing
Manufacture Lead Time Normally 2~3 weeks (Busy moments => 4 weeks)
Warranty 2 Years
Logo No Logo or Vision Marine Logo
(OEM Logo - Needs higher amount)
Payment 100% payment clear before shipment (Negotiable)
Shipment Term FOB Korea (Air & Ocean)
Origin Made in Korea
IP - Marine Bullet Camera

Key Features


  • 2.0 Mega pixel 1/2.8" SONY progressive sc an CMOS image sensor for excellent image quality
  • 3mm wide view MP lens
  • Low light, Ultra high sensitivity camera
  • High Temperature useful
  • Dual Streaming of H.264 and M-JPEG
  • Up to 30 frames per second at all image resolutions
  • Supports image resolutions up to 2MP
  • Integrated motion detection with pre- and post-alarm image/video buffering
  • Supports WDR, Defog, 2D+3DNR, Smart IR
  • Supports CBR (constant bit rate) and VBR (variable bit rate) modes
  • Controllable frame rate
  • Privacy Masking up to 4 areas
  • Integrated HTTP Web server supporting 8 simultaneous user connections
  • Conformant with ONVIF (Profile-S)
  • Includes Windows based IP Installer and license-free 16 channel NVR(Network Video Recorder) software



    Specifications


    MODEL

    SNNM1C51AR

    System

    CPU

    ARM1176JZF-STM                                                ( 400 MHz, Instruction cache: 32kbyte, data cache: 16kbyte, MMU )

    Flash

    2Gbit Flash memory

    SDRAM

    2Gbit DDR3

    Camera

    Image sensor

    2.0 Mega 1/2.8" SONY progressive scan CMOS

    Total Pixels

    1945(H) x 1109(V)  2.16 Megapixel

    Effective Pixels

    1945(H) x 1097(V)  2.13 Megapixel

    S/N Ratio

    More than 50dB

    Min. Illumination

    0 Lux (IR On)

    IR Distance

    40M (4 Built-in Power LED’s)

    Day & Night

    ICR

    Lens

    3mm / F1.5 STARVIS Megapixel Lens  (Option 6mm)

    Video

    Video compression

    H.264 High profile @Level 4.0, Motion JPEG

    Resolutions

    Up to 1920 x 1080  2MP

    Frame rate

    Dual Stream

    1st stream: H.264 Up to 30fps with 1920x1080P

    2nd stream: MJPEG Up to 30fps with VGA resolution

    Video streaming

    H.264 High Profile@4.1, MJPEG –Image quality: 3 Steps

    VBR/CBR in H.264

    Corridor view

    Corridor view (90degree/ 270degree)

    Image setting







    Brightness, contrast, Sharpness

    Day & Night

    Auto White Balance, Auto Exposure

    Privacy Mask, Defog

    DSS, DSS, 2DNR(On/Off), 3DNR(On/Off)

    System Integration

    Security

    Password Protection, User access log, HTTPS encryption

    Supported protocol

    HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP

    Intelligent video

    User set 12x12 ROI(Region of Interest), 5 Step Sensitivity.

    Alarm events

    Motion detection.

    Video buffer

    None

    Firmware upgrade

    Remote upgrade via network

    API

    CGI Interface document, ActiveX Interface(ocx(dll) + document)

    Physical

    Memory Slot(Option)

    Save to Micro SD card with event mode and continuous mode

    Power Source

    DC12V/1.5A,

    PoE(Power over Ethernet): 802.3af

    Power Consumption

    Max. 5W with IR ON

    Net Weight

    415g

    LED's

    Power, Network Connection

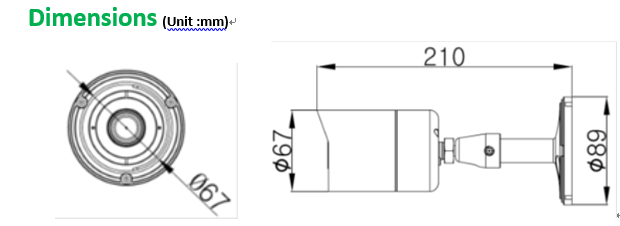

    Dimension

    67mm(Dia. Ø) x 104mm(H)

    General

    Operating Temperature

    -20 degree~80 degree Celsius(14F~176F)

    Storage Temperature

    -30 degree~60 degree Celsius(-4F~140F)

    Software

    Included Software

    NVR C/S (16 Channel), IP Installer (Windows only)

    * Specifications are subject to change without prior notice.
